Garmin Nmea 2000 Wiring Diagram. Garmin Nmea 2000 Installation Instructions Technical Reference for Garmin NMEA 2000 Products NMEA 2000 Fundamentals NMEA 2000 Fundamentals A NMEA 2000 network is made of connected NMEA 2000 devices that communicate using basic plug-and-play functionality Garmin ® ® ® ® ® Fusion® MS-RA70NSX Installation Instructions.
Garmin Nmea 2000 Wiring Diagram Wiring Diagram from wiringdiagram.2bitboer.com
Some devices or sensors can be powered by the NMEA 2000. Finally, the Garmin Nmea 2000 Wiring Diagram even provides troubleshooting tips and tricks to help those who experience difficulties during installation
Garmin Nmea 2000 Wiring Diagram Wiring Diagram
Stereo Supported chartplotter MFD or compatible Fusion NMEA 2000 remote control In-line switch NMEA 2000 power cable NMEA 2000 drop cable from the stereo, up to 6 m (20 ft.) Some devices or sensors can be powered by the NMEA 2000 network, and others may require a separate power connection. You should include all of the devices you intend to connect to the network.

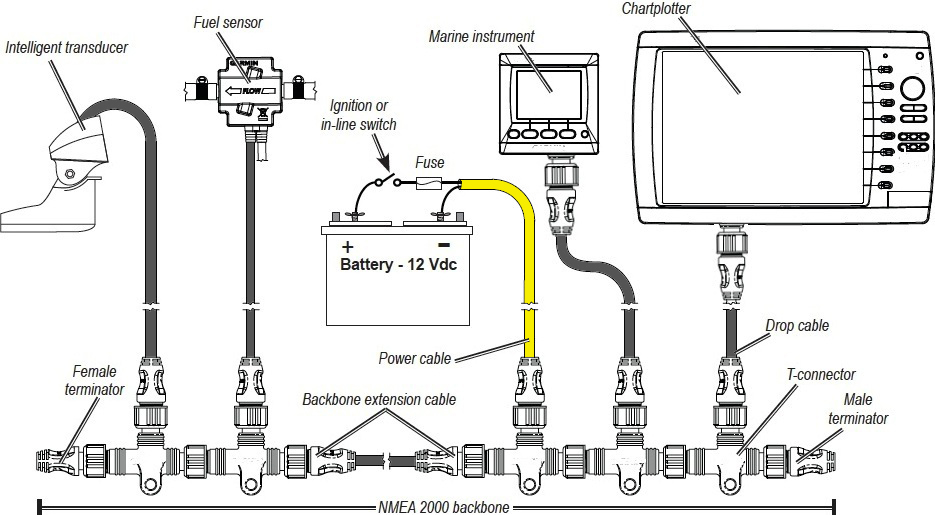

Garmin Nmea 2000 Wiring Diagram. The Garmin NMEA 2000 power cable connects to a T-connector like other drop cables When you design an NMEA 2000 network, you should start by creating a diagram of the network
[DIAGRAM] Garmin Gpsmap Nmea 2000 Wiring Diagram. Garmin ® ® ® ® ® Fusion® MS-RA70NSX Installation Instructions. If your boat already contains a NMEA 2000 network and you would like to add Garmin NMEA 2000 components, see page 8.
